KLD-FAE Series
Automatic Electrical Fire-extinguishing System
A new generation of wireless automatic electrical fire extinguishing system integrates "early warning, alarm and fire extinguishing", which is widely applied to power distribution cabinets in multiple scenarios.
In the power distribution system, most of the equipment are power distribution cabinets, network cabinets, cables and wires in cable tunnels or bridges. Due to the relatively closed space, the traditional fire alarm system focuses on the protection of the entire computer room or power distribution room. The fire can not be detected through video surveillance in the early stage, and the fire-extinguisng system will only started when the fire spreaded to a certain extent, but the equipment has already experienced serious damage. And there is no way to implement real-time monitoring and automatic fire extinguishing of confined spaces, thus can not control the source of the fire!
KLD-FAE series automatic electrical fire-extinguishing system integrates "early warning, alarm, extinguishing" functions, which has superior performance and high reliability, and it’s easy to install and maintain, meeting the urgent need of all users. It can be used independently or be networked with the control center.

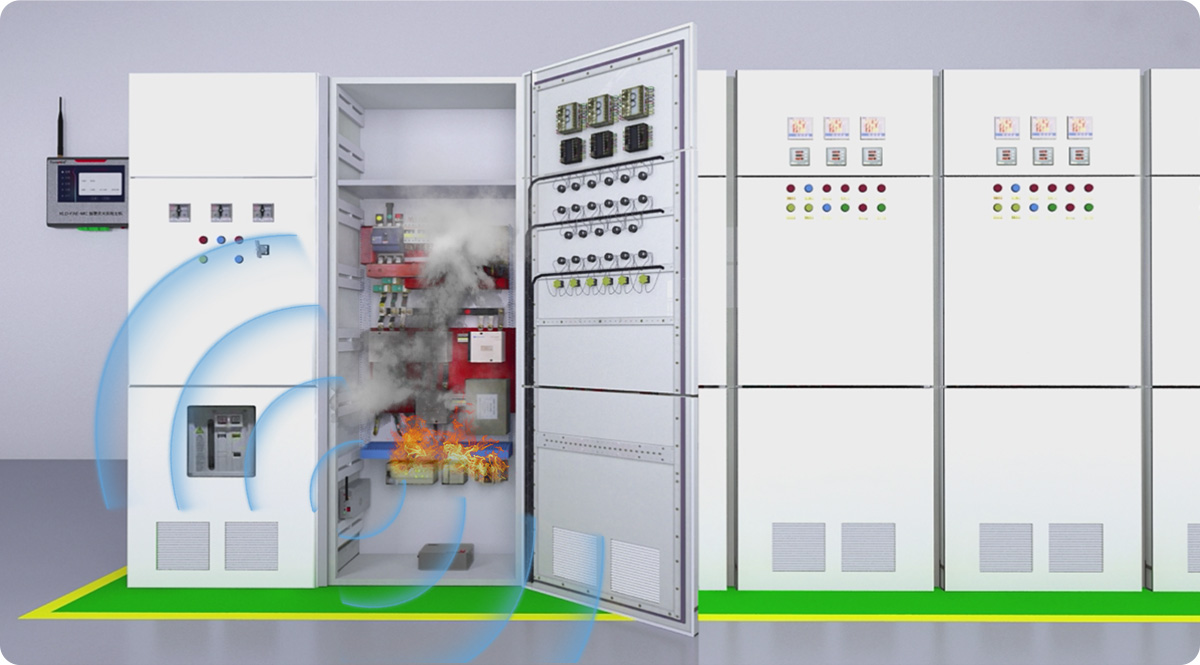

The system rapidly monitors the changes in the surrounding environment through the installation of distributed remote sensing module. Once the fire is detected, the system will quickly send an alarm signal through wireless communication to inform the location and the time of occurrence of the fire. It can automatically extinguish the fire while remotely informing the fire situation to ensure that the fire can be extinguished the first time.
KLD-FAE series automatic electrical fire-extinguishing system is mainly composed of three main devices: automatic alarm and fire-extinguishing system host, automatic alarm and fire-extinguishing controller and automatic fire-extinguishing device. The host receives the online monitoring data from the automatic alarm and fire-extinguishing controller and displays the temperature and smoke detection status in real time through wireless transmission. When an electrical fire occurs, the controller can quickly control the automatic fire-extinguishing device to extinguish the fire.
The system configuration is flexible and convenient, and can be installed anywhere in the monitored cabinet that needs to extinguish the fire, It protects the system uninterruptedly in 24-hours and the User can remotely receive the early warning alarm SMS information.
The system configuration is flexible and convenient, and can be installed anywhere in the monitored cabinet that needs to extinguish the fire, It protects the system uninterruptedly in 24-hours and the User can remotely receive the early warning alarm SMS information.
KLD-FAE series automatic electrical fire-extinguishing system is a complete electrical fire monitoring and control system that has the performance of abnormal warning, fire alarm, automatic fire extinguishing, system process display and fire protection record management.
Single series automatic fire-extinguishing equipment has the ability to operate independently and does not depend on external equipment or system support, which not only simplifies the installation process, but also reduces the maintenance and management costs.

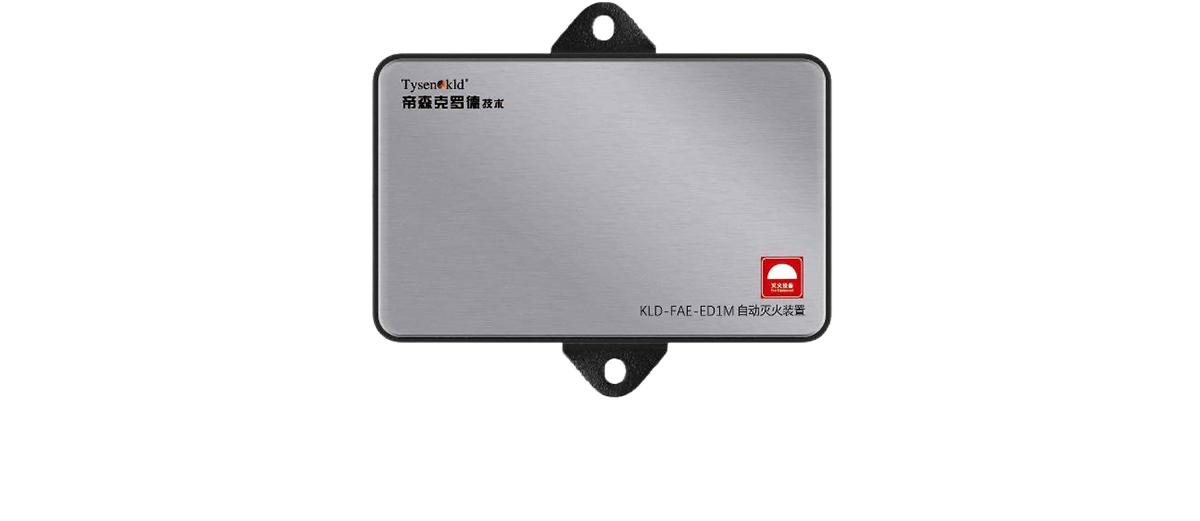

Matchbox series follows a miniaturized design concept that aims to provide quick and efficient fire extinguishing, which can quickly respond to fire and automaticaly extinguish the fire. The products can easily be placed in narrow spaces such as communication cabinets, small power distribution boxes, drawers, etc., saving a lot of valuable spaces for users.
| Automatic alarm and fire extinguishing system host KLD-FAE-MC | |
| InputPower | DC 12V(Adaptable to power AC220V input, DC12V output) |
| Operating frequency | 50Hz/60Hz±5Hz |
| Communication | RS232 or RS485, GSM(optional) |
| Wireless communication band | Dual frequency GSM900MHz and DCS1800 MHz(Phase 2+) |
| Alarm mode | 8 alarm phone numbers configurable |
| Display | LCD touch display panel |
| Ambient temperature | -40℃~+85℃ |
| EnvironmentHumidity | Maximum 95%RH (no condensing) |
| Altitude | ≤2000 meters (higher altitude can be customized) |
| Protection degree | IP20(other requirements can be customized) |
| Automatic alarm fire-extinguishing controller KLD-FAE-CT | |
| InputPower | DC 12V |
| Operating frequency | 50Hz/60Hz±5Hz |
| Detection accuracy | ±0.5℃ |
| Smoke sensitivity | Compiles with UL-217 standard |
| Alarm mode | Audible and visual alarm (optional) |
| Alarm intensity | 85dB(10ft) |
| Ambient temperature | -40℃~+125℃ |
| EnvironmentHumidity | Maximum 95%RH (no condensing) |
| Altitude | ≤2000 meters (higher altitude can be customized) |
| Protection degree | IP20(other requirements can be customized) |
| Automatic fire extinguishing equippment KLD-FAE-ED | |
| Operating voltage | DC12V |
| Starting current | 0.3A-1A |
| Protection space | ≤3m3(others can be customized) |
| Release time | ≤30s |
| Spray surface temperature | ≤200℃ |
| Thermal clearance | 100mm at the nozzle≤75℃ |
| Product insulation performance | ≥20MΩ |
| Service life | 10 years |
| Connection mode | Multiple pcs in series |
| Ambient temperature | -40℃~+125℃ |
| EnvironmentHumidity | Maximum 95%RH (no condensing) |
| Altitude | ≤2000 meters (higher altitude can be customized) |
| Protection degree | IP20(other requirements can be customized) |
| S SeriesAutomatic fire extinguishing equippment KLD-FAE-ED1S | |
| Protection space | ≤3m3(others can be customized) |
| Release time | ≤30s |
| Spray surface temperature | ≤200℃ |
| Thermal clearance | 100mm at the nozzle≤75℃ |
| Product insulation performance | ≥20MΩ |
| Service life | 10 years |
| Ambient temperature | -40℃~+125℃ |
| EnvironmentHumidity | Maximum 95%RH (no condensing) |
| Altitude | ＜1500 meters (higher altitude can be customized) |
| Protection degree | IP20(other requirements can be customized) |
| Starting mode | Thermal sensitive wire |
Automatic Electrical Fire-extinguishing System
InputPower ：DC 12V(Adaptable to power AC220V input, DC12V output)
Operating frequency：50Hz/60Hz±5Hz
Communication：RS232 or RS485, GSM(optional)
Wireless communication band：Dual frequency GSM900MHz and DCS1800 MHz(Phase 2+)
Alarm mode：8 alarm phone numbers configurable
Display：LCD touch display panel
Ambient temperature：-40℃~+85℃
EnvironmentHumidity：Maximum 95%RH (no condensing)
Altitude：≤2000 meters (higher altitude can be customized)
Protection degree：IP20(other requirements can be customized)
Automatic alarm fire-extinguishing controller
InputPower ：DC 12V
Operating frequency：50Hz/60Hz±5Hz
Detection accuracy：±0.5℃
Smoke sensitivity：Compiles with UL-217 standard
Alarm mode：Audible and visual alarm (optional)
Alarm intensity：85dB(10ft)
Ambient temperature：-40℃~+125℃
EnvironmentHumidity：Maximum 95%RH (no condensing)
Altitude：≤2000 meters (higher altitude can be customized)
Protection degree：IP20(other requirements can be customized)
Automatic fire extinguishing equippment
Operating voltage：DC12V
Starting current：0.3A-1A
Protection space：≤3m3(others can be customized)
Release time：≤30s
Spray surface temperature：≤200℃
Thermal clearance：100mm at the nozzle≤75℃
Product insulation performance： ≥20MΩ
Service life：10 years
Connection mode：Multiple pcs in series
Ambient temperature：-40℃~+125℃
EnvironmentHumidity：Maximum 95%RH (no condensing)
Altitude：≤2000 meters (higher altitude can be customized)
Protection degree：IP20(other requirements can be customized)
Series Automatic fire extinguishing equippment
Protection space：≤3m3(others can be customized)
Release time：≤30s
Spray surface temperature：≤200℃
Thermal clearance：100mm at the nozzle≤75℃
Product insulation performance： ≥20MΩ
Service life：10 years
Ambient temperature：-40℃~+125℃
EnvironmentHumidity：Maximum 95%RH (no condensing)
Altitude：＜1500 meters (higher altitude can be customized)
Protection degree：IP20(other requirements can be customized)
Starting mode：Thermal sensitive wire
