NYKM Series

Molded Case Circuit Breaker

Compact Safe Wide application Diversity

PRODUCT OVERVIEW

NYKM series molded case circuit breaker features small size, high breaking capacity, multiple specifications and full range of accessories, which is widely used in industrial, commercial, residential and infrastructure projects. It can meet customized needs with highly flexible systems to realize intelligent control and management.

DOUBLE INSULATION DESIGN

Adopts dual insulation design to increase the insulation of the product. The insulation voltage level is 1000V, and the molded case is equipped with standard inter-phase spacer, which makes the electricity safer and more adaptable to various operating scenarios.

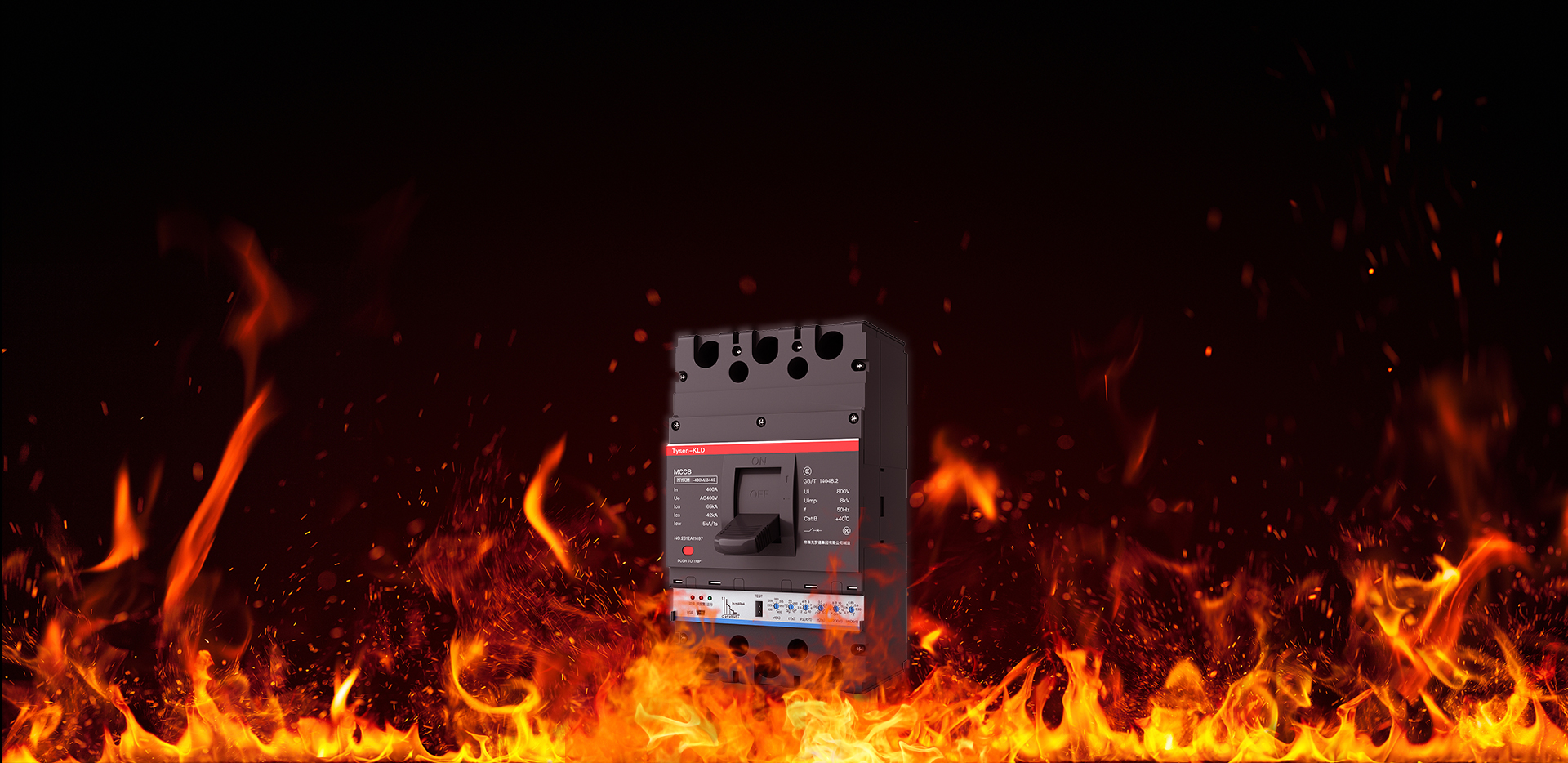

FLAME-RETARDANT AND HIGH
TEMPERATURE RESISTANT CASING

Adopts flame-retardant and high temperature resistant casing can effectively protect electrical equipment from the threat of fire and high temperature. We pay attention to details and structural stability in design to ensure that the product can operate normally in various harsh environments.

MULTIPLE TRIPPING MODES

Thermomagnetic mode

Overload long delay protection

Short-circuit instantaneous protection

Leakage mode

Overload long delay protection

Short-circuit instantaneous protection

Leakage protection

Electronic display

Overload long delay protection

Short-circuit instantaneous protection

Short-circuit short delay protection

Grounding fault protection

485Electrical energy measurement

Selective coordination

Technical Parameters

NYKM2 Series Thermomagnetic Molded Case Circuit Breaker

Model	Rated operating voltage Ue(V)	Casing current Inm(A)	Rated currentIn(A)	Rated insulation voltage Ui(V)	Rated impulse withstand voltage Uimp(kV)	Number of poles	Rated ultimate short -circuit breaking capacity code	Short-circuit breaking capacity
								Rated ultimate short-circuit breaking capacity Icu(kA)		Rated operating short-circuit breaking capacity Ics(kA)
								400V	690V	400V	690V
NYKM2-63	AC400	63	10、16、20、25、 32、40、50、63	AC500	AC8	3P	L	35	-	18	-
						3P、4P	M	50	-	25	-
NYKM2-100	AC400、AC690	100	16、20、25、32、40、 50、63、80、100	AC800	AC8	3P	L	35	20	22	10
						3P、4P	M	65	20	35	10
							H	85	20	50	10
NYKM2-225	AC400、AC690	225	100、125、140、160、 180、200、225	AC800	AC8	3P	L	35	20	22	10
						3P、4P	M	65	20	35	10
							H	85	20	50	10
NYKM2-250	AC400、AC690	250	100、125、140、160、 180、200、225、250	AC1000	AC8	3P	L	36	20	27	15
						3P、4P	M	50	20	40	15
							H	85	20	65	15
NYKM2-400	AC400、AC690	400	225、250、315、 350、400	AC800	AC8	3P、4P	L	50	15	35	10
							M	65	20	42	15
							H	100	20	65	15
NYKM2-630	AC400、AC690	630	400、500、630	AC800	AC8	3P、4P	L	50	15	35	10
							M	65	20	42	15
							H	100	20	65	15
NYKM2-800	AC400、AC690	800	630、700、800	AC1000	AC8	3P、4P	M	75	20	65	15
							H	100	20	75	15
NYKM2-1250	AC400、AC690	1250	800、1000、1250	AC800	AC8	3P	-	65	15	32.5	10

NYKM2L Series LEAKAGE Molded Case Circuit Breaker

Model

Rated operating voltage Ue(V)

Casing current Inm(A)

Rated currentIn(A)

Rated insulation voltage Ui(V)

Rated impulse withstand voltage Uimp(kV)

Number of poles

Rated ultimate short -circuit breaking capacity code

Short-circuit breaking capacity

Rated residual short -circuit making (breaking) capacity I△m(kA)

Rated residual operating current I△n (mA)

Rated residual non -operating current I△no

Rated ultimate short -circuit breaking capacity Icu(A)

Rated operating short -circuit breaking capacity Ics(A)

NYKM2L-125

AC400

125

16、20、25、32、40、 50、63、80、100、125

AC1000

AC8

3P、4P

1/4Icu

100/300/500

1/2I△no

NYKM2L-250

AC400

250

100、125、140、 160、180、200、 225、250

AC1000

AC8

3P、4P

100/300/500

NYKM2L-400

AC400

400

225、250、315、 350、400

AC1000

AC8

3P、4P

100/300/500

100

NYKM2L-630

AC400

630

400、500、630

AC1000

AC8

3P、4P

300/500/1000

100

NYKM2E Series Electronic Molded Case Circuit Breaker

Model	Rated operating voltage Ue(V)	Casing current Inm(A)	Rated currentIn(A)			Rated insulation voltage Ui(V)	Rated impulse withstand voltage Uimp(kV)	Number of poles	Rated ultimate short -circuit breaking capacity code	Short-circuit breaking capacity
										Rated ultimate short-circuit breaking capacity Icu(kA)	Rated operating short -circuit breaking capacity Ics(A)
										400V	400V
NYKM2E-100	AC400	100	16、20、 25、32	32、36、40、45、50、55、 60、63	63、65、70、75、80、85、 90、95、100	AC800	AC8	3P、4P	M	50	35
									H	85	50
NYKM2E-225	AC400	225	100、125、140、160、 180、200、225			AC800	AC8	3P、4P	M	65	35
									H	85	50
NYKM2E-250	AC400	250	100、125、140、160、 180、200、225、250			AC1000	AC8	3P、4P	M	50	50
								3P	H	85	50
NYKM2E-400	AC400	400	200、225、250、280、 315、350、400			AC800	AC8	3P、4P	M	65	42
									H	100	65
NYKM2E-800	AC400	800	400、420、440、 460、480、500、 530、560、600、630		630、640、660、 680、700、720、 740、760、780、800	AC800	AC8	3P、4P	M	65	42
									H	100	65

NYKM3 Series Thermomagnetic Molded Case Circuit Breaker r

Model	Rated operating voltage Ue(V)	Casing current Inm(A)	Rated currentIn(A)			Rated insulation voltage Ui(V)	Rated impulse withstand voltage Uimp(kV)	Number of poles	Rated ultimate short -circuit breaking capacity code	Rated ultimate short-circuit breaking capacity Icu(kA)	Rated operating short -circuit breaking capacity Ics(A)
								415V	690V	415V	690V
NYKMM3-63	AC415V	63	10、16、20、25、 32、40、50、63	AC1000V	AC8	3P、4P	L	36	12	36	10
							M	55	12	40	10
NYKMM3-125	AC415V、AC690V	125	16、20、25、32、40、 50、63、80、100、125	AC1000V	AC8	3P、4P	L	50	20	40	10
							M	75	20	55	10
							H	100	20	70	10
NYKMM3-250	AC415V、AC690V	250	100、125、140、160、 180、200、225、250	AC1000V	AC12	3P、4P	L	50	20	40	10
							M	75	20	55	10
							H	100	20	70	10
NYKMM3-400	AC415V、AC690V	400	225、250、315、350、 400	AC1000V	AC12	3P、4P	L	55	20	55	15
							M	75	20	75	15
							H	100	20	85	15
NYKMM3-630	AC415V、AC690V	630	400、500、630	AC1000V		3P、4P	L	55	20	55	15
							M	75	20	75	15
							H	100	20	85	15
NYKMM3-800	AC415V、AC690V	800	630、700、800	AC1000V		3P、4P	M	75	20	75	15
							H	100	20	85	15

NYKM3L Series LEAKAGE Molded Case Circuit Breaker

Model

Rated operating voltage Ue(V)

Casing current Inm(A)

Rated currentIn(A)

Selective category

Rated insulation voltage Ui(V)

Rated impulse withstand voltage Uimp(kV)

Number of poles

Rated ultimate short -circuit breaking capacity code

Short-circuit breaking capacity

Rated residual short-circuit making (breaking) capacity

Rated residual operating current I△n（mA）

Rated residual non -operating current I△no

Rated ultimate short-circuit breaking capacity Icu(kA)

Rated operating short -circuit breaking capacity Ics(A)

Ⅰ type

Ⅱ type

400V

NYKM3L-125

400V

125

16A、20A、25A、32A、40A、 50A、63A、80A、100A、125A

Category A

1000V

8KV

Icu×25%

100、300、500

30、100、300

I△n×50%

NYKM3L-250

400V

250

100A、125A、140A、160A、 180A、200A、225A、250A

Category A

1000V

8KV

Icu×25%

100、300、500

30、100、300

I△n×50%

NYKM3L-400

400V

400

225A、250A、315A、 350A、400A

Category A

1000V

8KV

Icu×25%

100、300、500

300、500、1000

I△n×50%

100

NYKM3L-800

400V

800

630A、700A、800A

Category A

1000V

8KV

Icu×25%

100、300、500

300、500、1000

I△n×50%

100

NYKM3E Series ELECTRONIC Molded Case Circuit Breaker

Model	Rated operating voltage Ue(V)	Casing current Inm(A)	Rated currentIn(A)	Rated insulation voltage Ui(V)	Rated impulse withstand voltage Uimp(kV)	Use category	Number of poles	Rated ultimate short -circuit breaking capacity code	Short-circuit breaking capacity
									Rated ultimate short-circuit breaking capacity Icu(kA)		Rated operating short -circuit breaking capacity Ics(A)
									400V	690V	400V	690V
NYKM3E-125	AC415V、 AC690V	32	12、14、16、18、20、22、25、28、30、32	AC1000V	AC8	A	3P、4P	M	70	20	50	15
		63	25、28、32、36、40、45、50、56、60、63
		125	50、63、70、75、80、85、90、95、100、125					H	85		65
NYKM3E-250		160	63、70、75、80、90、100、125、140、150、160			A	3P、4P	M	70	20	50	10
		250	100、112、125、140、150、160、180、200、225、250					H	85		65
NYKM3E-400		400	160、180、200、225、250、280、315、350、375、400			B	3P、4P	M	70	20	65	15
								H	100		75
NYKM3E-630		630	250、280、315、350、375、400、450、500、560、630			B	3P	M	75	30	65	20
								H	100		75
NYKM3E-800		630	250、280、315、350、375、400、450、500、560、630			B	3P、4P	M	75	30	65	20
		800	315、350、400、450、500、560、630、700、760、800					H	100		75

Selection table

NYKM2	250	M	P	3	2	00	2	B	250	Installation method
Product code	Housing grade	Breaking capacity	Operation mode	Pole No.	Type of tripping device	Accessory code	Application code	N-pole code	Rated current	Installation method
NYKM2： Thermo -magnetic Molded Case Circuit Breaker	63A 100A 225A 250A 400A 630A 800A 1250A	L:Basic type M:Standard type H:High breaking type	Z:Manual operation P:Electric operation None: Direct operation	3：3 pole 4：4 pole	2：Electro-magnetic type 3：Thermo-magnetic type 0：No trip	Refers to accessory table	2:Motor protection None: Power distribution protection	A:No overcurrent protection, N pole is always switched on B:No overcurrent protection, N pole is switched on and off with other three pole C:With overcurrent protection, N pole is switched on and off with other three pole D:With overcurrent protection, N pole is always switched on	10A、16A 20A、25A 32A、40A 50A、63A 80A、100A 125A、140A 160A、180A 200A、225A 250A、315A 350A、400A 630A、700A 800A、1000A 1250A	Fixed wiring at front panel. Fixed wiring at rear panel. Plug-in wiring at front panel. Plug-in wiring at rear panel. Withdrawable wiring at front panel. Withdrawable wiring at rear panel .

Note:
● Overload alarm non-tripping device (code 3200I,4200I) is applicable to NYKM2 series molded case circuit breaker 100, 225, 250, 400, 630 housing. However, all specifications of four-pole
circuit breaker of NYKM2 series with the neutral type C and D type do None overload alarm non-tripping function.
● Standard inter-phase spacer.

NYKM2L Series Leakage Molded Case Circuit Breaker

NYKM2L

250

Residual current

Relay type

Installation method

Product code

Casing grade

Breaking capacity

Operation mode

Pole No.

Type of tripping device

Accessory code

Application code

N-pole code

Rated current

Residual current

Relay type

Installation method

NYKM2L：
Leakage Molded Case Circuit breaker

125A
250A
400A
630A

M:Standard type
H:High breaking type

Z:Manual operation
P:Electric operation
None: Direct operation

3：3 pole
4：4 pole

2：Electro-magnetic type
3：Thermo-magnetic type

Refers to accessory table

2:Motor protection
None: Power distribution protection

A:No overcurrent protection, N pole is always switched on
B:No overcurrent protection, N pole is switched on and off with other three pole
C:With overcurrent protection, N pole is switched on and off with other three pole
D:With overcurrent protection, N pole is always switched on

16A
20A、25A
32A、40A
50A、63A
80A、100A
125A、140A
160A、180A
200A、225A
250A、315A
350A、400A
630A

100/300/ 500mA
300/500/1000mA

Relay type
Non-relay type

Fixed wiring at front panel.
Fixed wiring at rear panel.
Plug-in wiring at front panel.
Plug-in wiring at rear panel.
Withdrawable wiring at front panel.
Withdrawable wiring at rear panel .

Note:
● ：I: Indicates that the leakage alarm module sends out a signal and the circuit breaker is tripped at the same time.
● II: Indicates that the leakage alarm module sends out a signal and the circuit breaker is not tripped.
● Standard inter-phase spacer

NYKM2E Series Electronic Molded Case Circuit Breaker

NYKM2E	250	M	P	3	4	00	2	B	250	Installation method
Product code	Casing grade	Breaking capacity	Operation mode	Pole No.	Type of tripping device	Accessory code	Application code	N-pole code	Rated current	Installation method
NYKM2E： Electronic Molded Case Circuit Breaker	100A 225A 250A 400A 800A	L:Basic type M:Standard type H:High breaking type	Z:Manual operation P:Electric operation None: Direct operation	3：3 pole 4：4 pole	4：Electronic display	Refers to accessory table	2:Motor protection None: Power distribution protection	A:No overcurrent protection, N pole is always switched on B:No overcurrent protection, N pole is switched on and off with other three pole C:With overcurrent protection, N pole is switched on and off with other three pole D:With overcurrent protection, N pole is always switched on	32A 63A 100A 225A 250A 400A 630A 800A	Fixed wiring at front panel. Fixed wiring at rear panel. Plug-in wiring at front panel. Plug-in wiring at rear panel. Withdrawable wiring at front panel. Withdrawable wiring at rear panel .

Note:
● Overload alarm non-tripping module (code 3400I, 4400I) is applicable for NYKM2E series molded case circuit breakers; 100, 225, 250, 400, 800 housing can be equipped with alarm non-tripping module.
● Standard inter-phase spacer

NYKM3 Series Thermomagnetic Molded Case Circuit Breaker r

NYKM3	250	M	P	3	2	00	2	B	250	Installation method
Product code	Casing grade	Breaking capacity	Operation mode	Pole No.	Type of tripping device	Accessory code	Application code	N-pole code	Rated current	Installation method
NYKM3： Thermo -magnetic Molded Case Circuit Breaker	63A 125A 250A 400A 630A 800A	L:Basic type M:Standard type H:High breaking type	Z:Manual operation P:Electric operation None: Direct operation	3：3 pole 4：4 pole	2：Electro-magnetic type 3：Thermo-magnetic type 0：No trip	Refers to accessory table	2:Motor protection None: Power distribution protection	A:No overcurrent protection, N pole is always switched on B:No overcurrent protection, N pole is switched on and off with other three pole C:With overcurrent protection, N pole is switched on and off with other three pole D:With overcurrent protection, N pole is always switched on	10A、16A 20A、25A 32A、40A 50A、63A 80A、100A 125A、140A 160A、180A 200A、225A 250A、315A 350A、400A 630A、700A 800A	Fixed wiring at front panel. Fixed wiring at rear panel. Plug-in wiring at front panel. Plug-in wiring at rear panel. Withdrawable wiring at front panel. Withdrawable wiring at rear panel .

Note:
● Overload alarm non-tripping device (code 3200I,4200I) is applicable to NYKM3 series molded case circuit breaker 100, 225, 250, 400, 630 housing. However, all specifications of four-pole circuit breaker of NYKM3 series with the neutral type C and D type do None overload alarm non-tripping function.
● Standard inter-phase spacer.

NYKM3L Series LEAKAGE Molded Case Circuit Breaker

NYKM3L

250

Residual current

Non-relay type

Installation method

Product code

Casing grade

Breaking capacity

Operation mode

Pole No.

Type of tripping device

Accessory code

Application code

N-pole code

Rated current

Residual current

Relay type

Installation method

NYKM3L：
Leakage Molded Case Circuit Breaker

125A
250A
400A
800A

M:Standard type
H:High breaking type

Z:Manual operation
P:Electric operation
None: Direct operation

3：3 pole
4：4 pole

2：Electro-magnetic type
3：Thermo-magnetic type

Refers to accessory table

2:Motor protection
None: Power distribution protection

16A
20A、25A
32A、40A
50A、63A
80A、100A
125A、140A
160A、180A
200A、225A
250A、315A
350A、400A
630A、700A
800A

100/300/500mA
300/500/1000mA

Relay type
Non-relay type

Fixed wiring at front panel.
Fixed wiring at rear panel.
Plug-in wiring at front panel.
Plug-in wiring at rear panel.
Withdrawable wiring at front panel.
Withdrawable wiring at rear panel .

Note: ● I: Indicates that the leakage alarm module sends out a signal and the circuit breaker is tripped at the same time.
● II: Indicates that the leakage alarm module sends out a signal and the circuit breaker is not tripped.
● Standard inter-phase spacer

NYKM3E Series ELECTRONIC Molded Case Circuit Breaker

NYKM3E	250	M	P	3	4	00	2	B	250	Installation method
Product code	Casing grade	Breaking capacity	Operation mode	Pole No.	Type of tripping device	Accessory code	Application code	N-pole code	Rated current	Installation method
NYKM3L： Electronic Molded Case Circuit Breaker	125A 250A 400A 630A 800A	L:Basic type M:Standard type H:High breaking type	Z:Manual operation P:Electric operation None: Direct operation	3：3 pole 4：4 pole	4：Electronic display	Refers to accessory table	2:Motor protection None: Power distribution protection	A:No overcurrent protection, N pole is always switched on B:No overcurrent protection, N pole is switched on and off with other three pole C:With overcurrent protection, N pole is switched on and off with other three pole D:With overcurrent protection, N pole is always switched on	125A 250A 400A 630A 800A	Fixed wiring at front panel. Fixed wiring at rear panel. Plug-in wiring at front panel. Plug-in wiring at rear panel. Withdrawable wiring at front panel. Withdrawable wiring at rear panel .

Note:
● Overload alarm non-tripping module (code 3400I, 4400I) is applicable for NYKM3E series molded case circuit breakers; 100, 225, 250, 400, 800 housing can be equipped with alarm non-tripping module.
● Standard inter-phase spacer

Technical Parameters

NYKM2 Series Thermomagnetic Molded Case Circuit Breaker

Rated operating voltage Ue(V) ：AC400

Casing current Inm(A) ：63

Rated currentIn(A)：10、16、20、25、 32、40、50、63

Rated insulation voltage Ui(V)：AC500

Rated impulse withstand voltage Uimp(kV)：AC8

Number of poles ：3P/3P、4P

Rated ultimate short -circuit breaking capacity code：L/M

Rated ultimate short-circuit breaking capacity Icu(kA) ）：
35/50（400V）；-（690V）

Rated operating short-circuit breaking capacity Ics(kA) ：
18/25（400V）；-（690V）

Rated operating voltage Ue(V) ：AC400、AC690

Casing current Inm(A) ：100

Rated currentIn(A)：16、20、25、32、40、 50、63、80、100

Rated insulation voltage Ui(V)：AC800

Rated impulse withstand voltage Uimp(kV)：AC8

Number of poles ：3P/3P、4P/3P、4P

Rated ultimate short -circuit breaking capacity code：L/M/H

Rated ultimate short-circuit breaking capacity Icu(kA) ）：
35/65/85（400V）；20（690V）

Rated operating short-circuit breaking capacity Ics(kA) ：
22/35/50（400V）；10（690V）

Rated operating voltage Ue(V) ：AC400、AC690

Casing current Inm(A) ：225

Rated currentIn(A)：100、125、140、160、 180、200、225

Rated insulation voltage Ui(V)：AC800

Rated impulse withstand voltage Uimp(kV)：AC8

Number of poles ：3P/3P、4P/3P、4P

Rated ultimate short -circuit breaking capacity code：L/M/H

Rated ultimate short-circuit breaking capacity Icu(kA) ）：
35/65/85（400V）；20（690V）

Rated operating short-circuit breaking capacity Ics(kA) ：
22/35/50（400V）；10（690V）

Rated operating voltage Ue(V) ：AC400、AC690

Casing current Inm(A) ：250

Rated currentIn(A)：100、125、140、160、 180、200、225、250

Rated insulation voltage Ui(V)：AC1000

Rated impulse withstand voltage Uimp(kV)：AC8

Number of poles ：3P/3P、4P/3P、4P

Rated ultimate short -circuit breaking capacity code：L/M/H

Rated ultimate short-circuit breaking capacity Icu(kA) ）：
36/50/85（400V）；20（690V）

Rated operating short-circuit breaking capacity Ics(kA) ：
27/40/65 （400V）；15（690V）

Rated operating voltage Ue(V) ：AC400、AC690

Casing current Inm(A) ：400

Rated currentIn(A)：225、250、315、 350、400

Rated insulation voltage Ui(V)：AC800

Rated impulse withstand voltage Uimp(kV)：AC8

Number of poles ：3P、4P

Rated ultimate short -circuit breaking capacity code：L/M/H

Rated ultimate short-circuit breaking capacity Icu(kA) ）：
50/65/100（400V）； 15/20/20（690V）

Rated operating short-circuit breaking capacity Ics(kA) ：
35/42/65（400V）； 10/15/15（690V）

Rated operating voltage Ue(V) ：AC400、AC690

Casing current Inm(A) ：630

Rated currentIn(A)：400、500、630

Rated insulation voltage Ui(V)：AC800

Rated impulse withstand voltage Uimp(kV)：AC8

Number of poles ：3P、4P

Rated ultimate short -circuit breaking capacity code：L/M/H

Rated ultimate short-circuit breaking capacity Icu(kA) ）：
50/65/100（400V）； 15/20/20 （690V）

Rated operating short-circuit breaking capacity Ics(kA) ：
35/42/65 （400V）；10/15/15（690V）

Rated operating voltage Ue(V) ：AC400、AC690

Casing current Inm(A) ：800

Rated currentIn(A)：630、700、800

Rated insulation voltage Ui(V)：AC1000

Rated impulse withstand voltage Uimp(kV)：AC8

Number of poles ：3P、4P

Rated ultimate short -circuit breaking capacity code：M/H

Rated ultimate short-circuit breaking capacity Icu(kA) ）：
75/100 （400V）；20（690V）

Rated operating short-circuit breaking capacity Ics(kA) ：
65/75 （400V）；15（690V）

Rated operating voltage Ue(V) ：AC400、AC690

Casing current Inm(A) ：1250

Rated currentIn(A)：800、1000、1250

Rated insulation voltage Ui(V)：AC800

Rated impulse withstand voltage Uimp(kV)：AC8

Number of poles ：3P

Rated ultimate short -circuit breaking capacity code：-

Rated ultimate short-circuit breaking capacity Icu(kA) ）：65(400V)；15（690V）

Rated operating short-circuit breaking capacity Ics(kA) ：32.5(400V)；10（690V）

NYKM2L Series Leakage Molded Case Circuit Breaker

Rated operating voltage Ue(V) ：AC400

Casing current Inm(A) ：125

Rated currentIn(A)：16、20、25、32、40、 50、63、80、100、125

Rated insulation voltage Ui(V)：AC1000

Rated impulse withstand voltage Uimp(kV)：AC8

Number of poles ：3P、4P

Rated ultimate short -circuit breaking capacity code：M/H

Rated ultimate short-circuit breaking capacity Icu(kA) ）：50/85

Rated operating short-circuit breaking capacity Ics(kA) ：35/50

Rated residual short -circuit making (breaking) capacity I△m(kA) ：1/4Icu

Rated residual operating current I△n (mA) ：100/300/500

Rated residual non -operating current I△no：1/2I △no

Rated operating voltage Ue(V) ：AC400

Casing current Inm(A) ：250

Rated currentIn(A)：100、125、140、160、180、200、225、250

Rated insulation voltage Ui(V)：AC1000

Rated impulse withstand voltage Uimp(kV)：AC8

Number of poles ：3P、4P

Rated ultimate short -circuit breaking capacity code：M/H

Rated ultimate short-circuit breaking capacity Icu(kA) ）：50/85

Rated operating short-circuit breaking capacity Ics(kA) ：35/50

Rated residual short -circuit making (breaking) capacity I△m(kA) ：1/4Icu

Rated residual operating current I△n (mA) ：100/300/500

Rated residual non -operating current I△no：1/2I △no

Rated operating voltage Ue(V) ：AC400

Casing current Inm(A) ：400

Rated currentIn(A)：225、250、315、350、400

Rated insulation voltage Ui(V)：AC1000

Rated impulse withstand voltage Uimp(kV)：AC8

Number of poles ：3P、4P

Rated ultimate short -circuit breaking capacity code：M/H

Rated ultimate short-circuit breaking capacity Icu(kA) ）：65/100

Rated operating short-circuit breaking capacity Ics(kA) ：42/70

Rated residual short -circuit making (breaking) capacity I△m(kA) ：1/4Icu

Rated residual operating current I△n (mA) ：100/300/500

Rated residual non -operating current I△no：1/2I △no

Rated operating voltage Ue(V) ：AC400

Casing current Inm(A) ：630

Rated currentIn(A)：400、500、630

Rated insulation voltage Ui(V)：AC1000

Rated impulse withstand voltage Uimp(kV)：AC8

Number of poles ：3P、4P

Rated ultimate short -circuit breaking capacity code：M/H

Rated ultimate short-circuit breaking capacity Icu(kA) ）：65/100

Rated operating short-circuit breaking capacity Ics(kA) ：42/70

Rated residual short -circuit making (breaking) capacity I△m(kA) ：1/4Icu

Rated residual operating current I△n (mA) ：300/500/100

Rated residual non -operating current I△no：1/2I △no

NYKM2E Series Electronic Molded Case Circuit Breaker

Rated operating voltage Ue(V) ：AC400

Casing current Inm(A) ：100

Rated currentIn(A)：16、20、25、32/ 32、36、40、45、50、55、60、63/63、65、70、75、80、85、90、95、100

Rated insulation voltage Ui(V)：AC800

Rated impulse withstand voltage Uimp(kV)：AC8

Number of poles ：3P、4P

Rated ultimate short -circuit breaking capacity code：M/H

Rated ultimate short-circuit breaking capacity Icu(kA) ： 50 / 85 （400V）

Rated operating short-circuit breaking capacity Ics(kA) ： 35 / 50 （400V）

Rated operating voltage Ue(V) ：AC400

Casing current Inm(A) ：225

Rated currentIn(A)：100、125、140、160、180、200、225

Rated insulation voltage Ui(V)：AC800

Rated impulse withstand voltage Uimp(kV)：AC8

Number of poles ：3P、4P

Rated ultimate short -circuit breaking capacity code：M/H

Rated ultimate short-circuit breaking capacity Icu(kA) ： 65 / 85 （400V）

Rated operating short-circuit breaking capacity Ics(kA) ： 35 / 50 （400V）

Rated operating voltage Ue(V) ：AC400

Casing current Inm(A) ：250

Rated currentIn(A)：100、125、140、160、180、200、225、250

Rated insulation voltage Ui(V)：AC1000

Rated impulse withstand voltage Uimp(kV)：AC8

Number of poles ：3P、4P/3P

Rated ultimate short -circuit breaking capacity code：M/H

Rated ultimate short-circuit breaking capacity Icu(kA) ：50 / 85 （400V）

Rated operating short-circuit breaking capacity Ics(kA) ：50 / 50 （400V）

Rated operating voltage Ue(V) ：AC400

Casing current Inm(A) ：400

Rated currentIn(A)：200、225、250、280、 315、350、400

Rated insulation voltage Ui(V)：AC800

Rated impulse withstand voltage Uimp(kV)：AC8

Number of poles ：3P、4P

Rated ultimate short -circuit breaking capacity code：M/H

Rated ultimate short-circuit breaking capacity Icu(kA) ：65 / 100 （400V）

Rated operating short-circuit breaking capacity Ics(kA) ：42 / 65 （400V）

Rated operating voltage Ue(V) ：AC400

Casing current Inm(A) ：800

Rated currentIn(A)：400、420、440、460、480、500、530、560、600、630 / 630、640、660、680、700、720、740、760、780、800

Rated insulation voltage Ui(V)：AC800

Rated impulse withstand voltage Uimp(kV)：AC8

Number of poles ：3P、4P

Rated ultimate short -circuit breaking capacity code：M/H

Rated ultimate short-circuit breaking capacity Icu(kA) ： 65 / 100（400V）

Rated operating short-circuit breaking capacity Ics(kA) ： 42 / 65（400V）

NYKM3 Series Thermomagnetic Molded Case Circuit Breaker r

Rated operating voltage Ue(V) ：AC415

Casing current Inm(A) ：63

Rated currentIn(A)：10、16、20、25、 32、40、50、63

Rated insulation voltage Ui(V)：AC1000

Rated impulse withstand voltage Uimp(kV)：AC8

Number of poles ：3P、4P

Rated ultimate short -circuit breaking capacity code：L/M

Rated ultimate short-circuit breaking capacity Icu(kA) ：36 / 55 （415V）；12（690V）

Rated operating short-circuit breaking capacity Ics(kA) ：36 / 40 （415V）；10（690V）

Rated operating voltage Ue(V) ：AC415、AC690V

Casing current Inm(A) ：125

Rated currentIn(A)：16、20、25、32、40、 50、63、80、100、125

Rated insulation voltage Ui(V)：AC1000

Rated impulse withstand voltage Uimp(kV)：AC8

Number of poles ：3P、4P

Rated ultimate short -circuit breaking capacity code：L/M/H

Rated ultimate short-circuit breaking capacity Icu(kA) ：50 / 75 / 100 （415V）；20（690V）

Rated operating short-circuit breaking capacity Ics(kA) ：40 / 55 / 70 （415V）；10（690V）

Rated operating voltage Ue(V) ：AC415、AC690V

Casing current Inm(A) ：250

Rated currentIn(A)：100、125、140、160、 180、200、225、250

Rated insulation voltage Ui(V)：AC1000

Rated impulse withstand voltage Uimp(kV)：AC12

Number of poles ：3P、4P

Rated ultimate short -circuit breaking capacity code：L/M/H

Rated ultimate short-circuit breaking capacity Icu(kA) ：50 / 75 / 100 （415V）；20（690V）

Rated operating short-circuit breaking capacity Ics(kA) ：40 / 55 / 70 （415V）；10（690V）

Rated operating voltage Ue(V) ：AC415、AC690V

Casing current Inm(A) ：400

Rated currentIn(A)：225、250、315、350、 400

Rated insulation voltage Ui(V)：AC1000

Rated impulse withstand voltage Uimp(kV)：AC12

Number of poles ：3P、4P

Rated ultimate short -circuit breaking capacity code：L/M/H

Rated ultimate short-circuit breaking capacity Icu(kA) ：55 / 75 / 100 （415V）；20（690V）

Rated operating short-circuit breaking capacity Ics(kA) ：55 / 75 / 85 （415V）；15（690V）

Rated operating voltage Ue(V) ：AC415、AC690V

Casing current Inm(A) ：630

Rated currentIn(A)：400、500、630

Rated insulation voltage Ui(V)：AC1000

Rated impulse withstand voltage Uimp(kV)：AC12

Number of poles ：3P、4P

Rated ultimate short -circuit breaking capacity code：L/M/H

Rated ultimate short-circuit breaking capacity Icu(kA) ：55 / 75 / 100 （415V）；20（690V）

Rated operating short-circuit breaking capacity Ics(kA) ：55 / 75 / 85 （415V）；15（690V）

Rated operating voltage Ue(V) ：AC415、AC690V

Casing current Inm(A) ：800

Rated currentIn(A)：630、700、800

Rated insulation voltage Ui(V)：AC1000

Rated impulse withstand voltage Uimp(kV)：AC12

Number of poles ：3P、4P

Rated ultimate short -circuit breaking capacity code：M/H

Rated ultimate short-circuit breaking capacity Icu(kA) ： 75 / 100 （415V）；20（690V）

Rated operating short-circuit breaking capacity Ics(kA) ：75 / 85 （415V）；15（690V）

NYKM3L Series LEAKAGE Molded Case Circuit Breaker

Rated operating voltage Ue (V)：400V

Casing current Inm(A) ：126

Rated currentIn(A)：16A、20A、25A、32A、40A、 50A、63A、80A、100A、125A

Selective category ：Category A

Rated insulation voltage Ui(V)：1000V

Rated impulse withstand voltage Uimp(kV)：8KV

Number of poles ：3 / 4 / 3 / 4

Rated ultimate short -circuit breaking capacity code：M / M / H / H

Rated ultimate short-circuit breaking capacity Icu(kA) ：50 / 50 / 85 / 85 （400V）

Rated operating short-circuit breaking capacity Ics(kA) ：35 / 35 / 50 / 50 （400V）

Rated residual short-circuit making (breaking) capacity：Icu×25%

Rated residual operating current I△n (mA) ：100、300、500 （Ⅰ type）；30、100、300 （Ⅱ type）

Rated residual non -operating current I△no ：I△n×50%

Rated operating voltage Ue (V)：400V

Casing current Inm(A) ：250

Rated currentIn(A)：100A、125A、140A、160A、 180A、200A、225A、250A

Selective category ：Category A

Rated insulation voltage Ui(V)：1000V

Rated impulse withstand voltage Uimp(kV)：8KV

Number of poles ：3 / 4 / 3 / 4

Rated ultimate short -circuit breaking capacity code：M / M / H / H

Rated ultimate short-circuit breaking capacity Icu(kA) ：50 / 50 / 85 / 85 （400V）

Rated operating short-circuit breaking capacity Ics(kA) ：35 / 35 / 50 / 50 （400V）

Rated residual short-circuit making (breaking) capacity：Icu×25%

Rated residual operating current I△n (mA) ：100、300、500 （Ⅰ type）；30、100、300 （Ⅱ type）

Rated residual non -operating current I△no ：I△n×50%

Rated operating voltage Ue (V)：400V

Casing current Inm(A) ：400

Rated currentIn(A)：225A、250A、315A、 350A、400A

Selective category ：Category A

Rated insulation voltage Ui(V)：AC1000V

Rated impulse withstand voltage Uimp(kV)：8KV

Number of poles ：3 / 4 / 3 / 4

Rated ultimate short -circuit breaking capacity code：M / M / H / H

Rated ultimate short-circuit breaking capacity Icu(kA) ：65 / 65 / 100 / 100 （400V）

Rated operating short-circuit breaking capacity Ics(kA) ：42 / 42 / 70 / 70 （400V）

Rated residual short-circuit making (breaking) capacity：Icu×25%

Rated residual operating current I△n (mA) ：100、300、500 （Ⅰ type）；300、500、1000 （Ⅱ type）

Rated residual non -operating current I△no ：I△n×50%

Rated operating voltage Ue (V)：400V

Casing current Inm(A) ：800

Rated currentIn(A)：630A、700A、800A

Selective category ：Category A

Rated insulation voltage Ui(V)：AC1000V

Rated impulse withstand voltage Uimp(kV)：8KV

Number of poles ：3 / 4 / 3 / 4

Rated ultimate short -circuit breaking capacity code：M / M / H / H

Rated ultimate short-circuit breaking capacity Icu(kA) ：65 / 65 / 100 / 100 （400V）

Rated operating short-circuit breaking capacity Ics(kA) ：42 / 42 / 70 / 70 （400V）

Rated residual short-circuit making (breaking) capacity：Icu×25%

Rated residual operating current I△n (mA) ：100、300、500 （Ⅰ type）；300、500、1000 （Ⅱ type）

Rated residual non -operating current I△no ：I△n×50%

NYKM3E Series ELECTRONIC Molded Case Circuit Breaker

Rated operating voltage Ue (V)：AC415V、 AC690V

Casing current Inm(A) ：32/63/125

Rated currentIn(A)：12、14、16、18、20、22、25、28、30、32 / 25、28、32、36、40、45、50、56、60、63 / 50、63、70、75、80、85、90、95、100、125

Rated insulation voltage Ui(V)：AC1000V

Rated impulse withstand voltage Uimp(kV)：AC8

Use category ：A

Number of poles ：3P、4P

Rated ultimate short -circuit breaking capacity code： M / H

Rated ultimate short-circuit breaking capacity Icu(kA) ：70 / 85 （400V）；20（690V）

Rated operating short-circuit breaking capacity Ics(kA) ：50 / 65 （400V）；15（690V）

Rated operating voltage Ue (V)：AC415V、 AC690V

Casing current Inm(A) ：160/250

Rated currentIn(A)：63、70、75、80、90、100、125、140、150、160 / 100、112、125、140、150、160、180、200、225、250

Rated insulation voltage Ui(V)：AC1000V

Rated impulse withstand voltage Uimp(kV)：AC8

Use category ：A

Number of poles ：3P、4P

Rated ultimate short -circuit breaking capacity code： M / H

Rated ultimate short-circuit breaking capacity Icu(kA) ：70 / 85 （400V）；20（690V）

Rated operating short-circuit breaking capacity Ics(kA) ：50 / 65 （400V）；10（690V）

Rated operating voltage Ue (V)：AC415V、 AC690V

Casing current Inm(A) ：400

Rated currentIn(A)：160、180、200、225、250、280、315、350、375、400

Rated insulation voltage Ui(V)：AC1000V

Rated impulse withstand voltage Uimp(kV)：AC8

Use category ：B

Number of poles ：3P、4P

Rated ultimate short -circuit breaking capacity code： M / H

Rated ultimate short-circuit breaking capacity Icu(kA) ：70 / 100 （400V）；20（690V）

Rated operating short-circuit breaking capacity Ics(kA) ：65 / 75 （400V）；15（690V）

Rated operating voltage Ue (V)：AC415V、 AC690V

Casing current Inm(A) ：630

Rated currentIn(A)：250、280、315、350、375、400、450、500、560、630

Rated insulation voltage Ui(V)：AC1000V

Rated impulse withstand voltage Uimp(kV)：AC8

Use category ：B

Number of poles ：3P

Rated ultimate short -circuit breaking capacity code： M / H

Rated ultimate short-circuit breaking capacity Icu(kA) ：75 / 100 （400V）；30（690V）

Rated operating short-circuit breaking capacity Ics(kA) ：65 / 75 （400V）；20（690V）

Rated operating voltage Ue (V)：AC415V、 AC690V

Casing current Inm(A) ：630/800

Rated currentIn(A)：250、280、315、350、375、400、450、500、560、630 / 315、350、400、450、500、560、630、700、760、800

Rated insulation voltage Ui(V)：AC1000V

Rated impulse withstand voltage Uimp(kV)：AC8

Use category ：B

Number of poles ：3P、4P

Rated ultimate short -circuit breaking capacity code： M / H

Rated ultimate short-circuit breaking capacity Icu(kA) ：75 / 100 （400V）；30（690V）

Rated operating short-circuit breaking capacity Ics(kA) ：65 / 75 （400V）；20（690V）

Selection table

Product code ：NYKM2：Thermo -magnetic Molded Case Circuit Breaker

Casing grade：63A、100A、225A、 250A、400A、630A、800A、1250A

Breaking capacity ：L:Basic type、M:Standard type、 H:High breaking type

Operation mode：Z:Manual operation、P:Electric operation、None: Direct operation

Pole No.：3：3 pole、4：4 pole

Type of tripping device：2：Electro-magnetic type 、3：Thermo-magnetic type 、0：No trip

Accessory code：Refers to accessory table

Application code：2:Motor protection 、None: Power distribution protection

N-pole code：A:No overcurrent protection, N pole is always switched on、B:No overcurrent protection, N pole is switched on and off with other three pole、C:With overcurrent protection, N pole is switched on and off with other three pole、D:With overcurrent protection, N pole is always switched on

Rated current：10A、16A、20A、25A 、32A、40A 、50A、63A、0A、100A、125A、140A 、160A、180A、200A、225A、250A、315A、350A、400A 、630A、700A、800A、1000A、1250A

Installation method：Fixed wiring at front panel.、Fixed wiring at rear panel.、Plug-in wiring at front panel.、Plug-in wiring at rear panel.、Withdrawable wiring at front panel.、Withdrawable wiring at rear panel .

Note: ? Overload alarm non-tripping device (code 3200I,4200I) is applicable to NYKM2 series molded case circuit breaker 100, 225, 250, 400, 630 housing. However, all specifications of four-pole circuit breaker of NYKM2 series with the neutral type C and D type do None overload alarm non-tripping function.Standard inter-phase spacer.
? Standard inter-phase spacer.

Product code ：NYKM2L Series Leakage Molded Case Circuit Breaker

Casing grade：125A、250A、400A、630A

Breaking capacity ：M:Standard type、 H:High breaking type

Operation mode：Z:Manual operation、P:Electric operation、None: Direct operation

Pole No.：3：3 pole、4：4 pole

Type of tripping device：2：Electro-magnetic type 、3：Thermo-magnetic type

Accessory code：Refers to accessory table

Application code：2:Motor protection 、None: Power distribution protection

N-pole code：A:No overcurrent protection, N pole is always switched on、B:No overcurrent protection, N pole is switched on and off with other three pole、C:With overcurrent protection, N pole is switched on and off with other three pole、D:With overcurrent protection, N pole is always switched on

Rated current：16A、20A、25A 、32A、40A 、50A、63A、0A、100A、125A、140A 、160A、180A、200A、225A、250A、315A、350A、400A 、630A

Residual current ：100/300/500mA/ 300/500/1000mA

Relay type：Relay type 、Non-relay type

Installation method：Fixed wiring at front panel.、Fixed wiring at rear panel.、Plug-in wiring at front panel.、Plug-in wiring at rear panel.、Withdrawable wiring at front panel.、Withdrawable wiring at rear panel .

注：? I: Indicates that the leakage alarm module sends out a signal and the circuit breaker is tripped at the same time.
II: Indicates that the leakage alarm module sends out a signal and the circuit breaker is not tripped.
? Standard inter-phase spacer

Product code：NYKM2E: Electronic Molded Case Circuit Breaker

Casing grade：100A、225A、250A、400A、800A

Breaking capacity：M:Standard type、 H:High breaking type

Operation mode：Z:Manual operation、P:Electric operation、None: Direct operation

Pole No.：3：3 pole、4：4 pole

Type of tripping device：4：Electronic display

Accessory code：Refers to accessory table

Application code：2:Motor protection 、None: Power distribution protection

N-pole code：A:No overcurrent protection, N pole is always switched on、B:No overcurrent protection, N pole is switched on and off with other three pole、C:With overcurrent protection, N pole is switched on and off with other three pole、D:With overcurrent protection, N pole is always switched on

Rated current：32A、63A、100A、225A、250A、400A 、630A、800A

Installation method：Fixed wiring at front panel.、Fixed wiring at rear panel.、Plug-in wiring at front panel.、Plug-in wiring at rear panel.、Withdrawable wiring at front panel.、Withdrawable wiring at rear panel .

注：? ：Note: Overload alarm non-tripping module (code 3400I, 4400I) is applicable for NYKM2E series molded case circuit breakers; 100, 225, 250, 400, 800 housing can be equipped with alarm non-tripping module.

? Standard inter-phase spacer

Product code ：NYKM3：Thermo -magnetic Molded Case Circuit Breaker

Casing grade：63A、125A、250A、400A 630A、800A

Breaking capacity ：M:Standard type、 H:High breaking type、H:High breaking type

Operation mode：Z:Manual operation、P:Electric operation、None: Direct operation

Pole No.：3：3 pole、4：4 pole

Type of tripping device：2：Electro-magnetic type 、3：Thermo-magnetic type 、0：No trip

Accessory code：Refers to accessory table

Application code：2:Motor protection 、None: Power distribution protection

N-pole code：A:No overcurrent protection, N pole is always switched on、B:No overcurrent protection, N pole is switched on and off with other three pole、C:With overcurrent protection, N pole is switched on and off with other three pole、D:With overcurrent protection, N pole is always switched on

Rated current：16A、20A、25A 、32A、40A 、50A、63A、0A、100A、125A、140A 、160A、180A、200A、225A、250A、315A、350A、400A 、630A、700A、800A

Installation method：Fixed wiring at front panel.、Fixed wiring at rear panel.、Plug-in wiring at front panel.、Plug-in wiring at rear panel.、Withdrawable wiring at front panel.、Withdrawable wiring at rear panel .

注：? Note: Overload alarm non-tripping device (code 3200I,4200I) is applicable to NYKM3 series molded case circuit breaker 100, 225, 250, 400, 630 housing. However, all specifications of four-pole circuit breaker of NYKM3 series with the neutral type C and D type do None overload alarm non-tripping function.
? Standard inter-phase spacer.

Product code ：NYKM3L ：Series Leakage Molded Case Circuit Breaker

Casing grade：125A、250A、400A、800A

Breaking capacity ：M:Standard type、 H:High breaking type

Operation mode：Z:Manual operation、P:Electric operation、None: Direct operation

Pole No.：3：3 pole、4：4 pole

Type of tripping device：2：Electro-magnetic type 、3：Thermo-magnetic type

Accessory code：Refers to accessory table

Application code：2:Motor protection 、None: Power distribution protection

N-pole code：A:No overcurrent protection, N pole is always switched on、B:No overcurrent protection, N pole is switched on and off with other three pole、C:With overcurrent protection, N pole is switched on and off with other three pole、D:With overcurrent protection, N pole is always switched on

Rated current：16A、20A、25A 、32A、40A 、50A、63A、0A、100A、125A、140A 、160A、180A、200A、225A、250A、315A、350A、400A 、630A、700A、800A

Residual current ：100/300/ 500mA、 300/500/1000mA

Relay type：Relay type 、Non-relay type

Installation method：Fixed wiring at front panel.、Fixed wiring at rear panel.、Plug-in wiring at front panel.、Plug-in wiring at rear panel.、Withdrawable wiring at front panel.、Withdrawable wiring at rear panel .

Note: ? I: Indicates that the leakage alarm module sends out a signal and the circuit breaker is tripped at the same time.
? II: Indicates that the leakage alarm module sends out a signal and the circuit breaker is not tripped.
? Standard inter-phase spacer

Product code ：NYKM3E: Electronic Molded Case Circuit Breaker

Casing grade：125A、250A、400A、630A、800A

Breaking capacity ：L:Basic type、M:Standard type、 H:High breaking type

Operation mode：Z:Manual operation、P:Electric operation、None: Direct operation

Pole No.：3：3 pole、4：4 pole

Type of tripping device：4：Electronic display

Accessory code：Refers to accessory table

Application code：2:Motor protection 、None: Power distribution protection

N-pole code：A:No overcurrent protection, N pole is always switched on、B:No overcurrent protection, N pole is switched on and off with other three pole、C:With overcurrent protection, N pole is switched on and off with other three pole、D:With overcurrent protection, N pole is always switched on

Rated current：125A、250A、400A、630A、800A

Installation method：Fixed wiring at front panel.、Fixed wiring at rear panel.、Plug-in wiring at front panel.、Plug-in wiring at rear panel.、Withdrawable wiring at front panel.、Withdrawable wiring at rear panel .

Note:? Overload alarm non-tripping module (code 3400I, 4400I) is applicable for NYKM3E series molded case circuit breakers; 100, 225, 250, 400, 800 housing can be equipped with alarm non-tripping module.
? Standard inter-phase spacer

page top

PRODUCT OVERVIEW

DOUBLE INSULATION DESIGN

FLAME-RETARDANT AND HIGHTEMPERATURE RESISTANT CASING

MULTIPLE TRIPPING MODES

Thermomagnetic mode

Leakage mode

Electronic display

NYKM2 Series Thermomagnetic Molded Case Circuit Breaker

NYKM2L Series LEAKAGE Molded Case Circuit Breaker

NYKM2E Series Electronic Molded Case Circuit Breaker

NYKM3 Series Thermomagnetic Molded Case Circuit Breaker r

NYKM3L Series LEAKAGE Molded Case Circuit Breaker

NYKM3E Series ELECTRONIC Molded Case Circuit Breaker

NYKM2L Series Leakage Molded Case Circuit Breaker

NYKM2E Series Electronic Molded Case Circuit Breaker

NYKM3 Series Thermomagnetic Molded Case Circuit Breaker r

NYKM3L Series LEAKAGE Molded Case Circuit Breaker

NYKM3E Series ELECTRONIC Molded Case Circuit Breaker

NYKM2-63 Fold Details

NYKM2-100 Fold Details

NYKM2-225 Fold Details

NYKM2-250 Fold Details

NYKM2-400 Fold Details

NYKM2-630 Fold Details

NYKM2-800 Fold Details

NYKM2-1250 Fold Details

NYKM2L-125 Fold Details

NYKM2L-250 Fold Details

NYKM2L-400 Fold Details

NYKM2L-630 Fold Details

NYKM2E-100 Fold Details

NYKM2E-225 Fold Details

NYKM2E-250 Fold Details

NYKM2E-400 Fold Details

NYKM2E-800 Fold Details

NYKM3-63 Fold Details

NYKM3-125 Fold Details

NYKM3-250 Fold Details

NYKM3-400 Fold Details

NYKM3-630 Fold Details

NYKM3-800 Fold Details

NYKM3L-125 Fold Details

NYKM3L-250 Fold Details

NYKM3L-400 Fold Details

NYKM3L-800 Fold Details

NYKM3E-125 Fold Details

NYKM3E-250 Fold Details

NYKM3E-400 Fold Details

NYKM3E-630 Fold Details

NYKM3E-800 Fold Details

NYKM2 Series Thermomagnetic Fold Details

NYKM2L Series Leakage Fold Details

NYKM2E Series ELECTRONIC Fold Details

NYKM3 Series Thermomagnetic Fold Details

NYKM3L Series Leakage Fold Details

NYKM3E Series ELECTRONIC Fold Details

FLAME-RETARDANT AND HIGH
TEMPERATURE RESISTANT CASING
